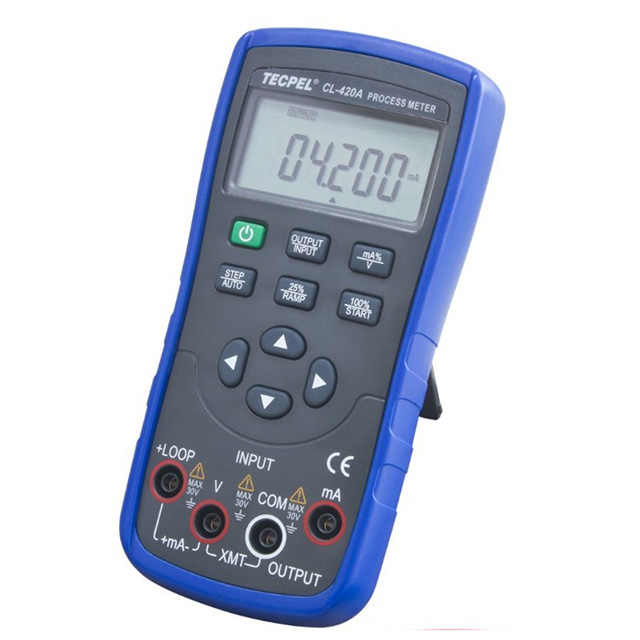

TECPEL CL420A : Process Calibrator 4-20mA. Provides DC 24V loop voltage, and measure current at the same time, and perform switch on and off measurement.
Features:
- 5 digits display.
- DC Voltage output (DCV) : 24 V. (+/- 10%)
- DC Current Loop Output (DCA) : 0.100mA to 22.00 mA (+/- 0.05% + 4 uA)
- DC Voltage measurement: +/- 0.100 to 28.00 V. (+/- 0.02% + 2 mV)
- DC Current measurement: +/- 0.001mA to 20.000 mA. (+/- 0.02% + 4 uA)
Description
The CL-420A is a handheld programmable calibrator for measurement and signal output. Its great for measuring tiny currents and voltage signals, and it can power sensors while checking their returned current signals. Mainly used in sensor testing and monitoring gear, like for humidity, water level, wind speed, pressure, and other sensors and monitors. Definitely a must-have tool for engineers and technicians servicing sensor equipment.
|
|

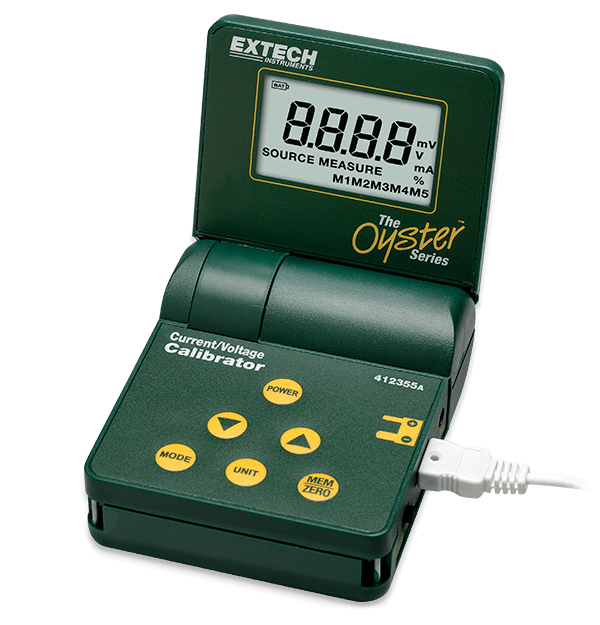

EXTECH 412355A : 412355A Current & Voltage Calibrator. Large 3-1/2 digit LCD displays readings in mA or as a % of the 0 to 24mA range or as mV in voltage ranges
Features:
- Oyster case with “flip-up” display is ideal for handheld or benchtop applications
- Large 3-1/2 digit LCD displays readings in mA or as a % of the 0 to 24mA range or as mV in voltage ranges
- Current Calibrator model provides 0 to 24mA output displayed as mA or % and will Power and Measure a two-wire current Loop
Description
The Model 412300 Current Calibrator can measure and source current. It also has 12VDC loop power for powering and measuring simultaneously. The Model 412355 can measure and source current and voltage. The Oyster Series meters have a convenient flip up display with neck-strap for hands-free operation. With proper care this meter will provide years of safe, reliable service.
General Specifications
|
| Display |
3 1/2 digit LCD (2000 counts, displays 0 to 1999) |
| Accuracy (of reading) |
± (0.075% + 1 digit) or ± 3 digits, Whichever is greater |
| Meter Power |
9 volt battery or optional AC adaptor |
| Loop Power |
12V DC (412355 only) |
| Maximum Load |
350 ohms at 20 mA |
| Dimensions |
3.8 x 4.2 x 1.8" (96 x 108 x 45mm) folded |
| Weight |
12 oz. (340g) |
| Accessories Supplied |
9V battery and calibration cable with spade lugs |
| Optional Accessories |
AC Adaptor, NIST Certificate, and Carrying Case |
Range Specifications
|
| Measurement range (resolution) |
0 to 50mA (0.1mA), 0 to 19.99mA (0.01mA) |
| Output ranges (resolution) |
0 to 19.99mA (0.01mA), 0 to 25.0mA (0.1mA), 0 to 1999mV (1mV), 0 to 10.00V (0.01V) |
|
|
|
|
EXTECH 412355A-NIST : 412355A Current & Voltage Calibrator. Large 3-1/2 digit LCD displays readings in mA or as a % of the 0 to 24mA range or as mV in voltage ranges
Features:
- Oyster case with “flip-up” display is ideal for handheld or benchtop applications
- Large 3-1/2 digit LCD displays readings in mA or as a % of the 0 to 24mA range or as mV in voltage ranges
- Current Calibrator model provides 0 to 24mA output displayed as mA or % and will Power and Measure a two-wire current Loop
Description
The Model 412300 Current Calibrator can measure and source current. It also has 12VDC loop power for powering and measuring simultaneously. The Model 412355 can measure and source current and voltage. The Oyster Series meters have a convenient flip up display with neck-strap for hands-free operation. With proper care this meter will provide years of safe, reliable service.
General Specifications |
| Display |
3 1/2 digit LCD (2000 counts, displays 0 to 1999) |
| Accuracy (of reading) |
± (0.075% + 1 digit) or ± 3 digits, Whichever is greater |
| Meter Power |
9 volt battery or optional AC adaptor |
| Loop Power |
12V DC (412355 only) |
| Maximum Load |
350 ohms at 20 mA |
| Dimensions |
3.8 x 4.2 x 1.8" (96 x 108 x 45mm) folded |
| Weight |
12 oz. (340g) |
| Accessories Supplied |
9V battery and calibration cable with spade lugs |
| Optional Accessories |
AC Adaptor, NIST Certificate, and Carrying Case |
Range Specifications |
| Measurement range (resolution) |
0 to 50mA (0.1mA), 0 to 19.99mA (0.01mA) |
| Output ranges (resolution) |
0 to 19.99mA (0.01mA), 0 to 25.0mA (0.1mA), 0 to 1999mV (1mV), 0 to 10.00V (0.01V) |
|
